Brake Shoes - Ate1036Bs (Ate)

Brake Shoe Specifications

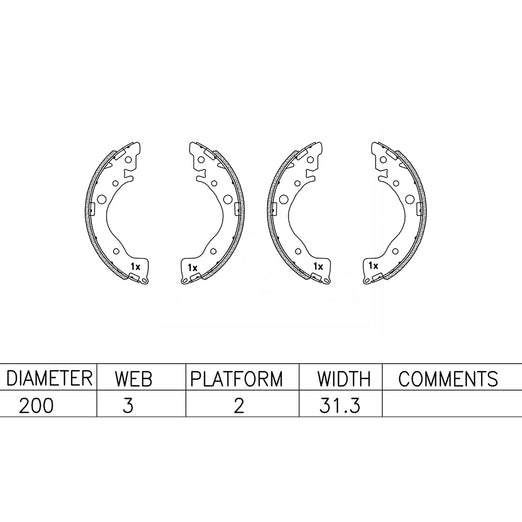

Click here to view the product picture/drawing

• Vendor: ATE
• Part Number: ATE1036BS
• Shoe Diameter (mm): 200
• Shoe Width (mm): 31
• Lever included (y=yes,n=no): N

About Vendor

ATE brake shoes are known as some of the best on the market thanks to first-class materials, accurate manufacturing and extensive testing.ATE Brake System products have accreditations which include: ISO 9001:2015 (Quality Management Systems), ISO 14001 (Environmental Management), as well as BS OHSAS 18001:2007. ATE Brake Shoes adhere to the VC8053 Standard which are approved by SABS.

Features & benefits

• Increased rust protection thanks to powder coating.
• Optimal performance even for the first braking thanks to radius-ground brake shoes.
• Installation kit also available.

Technical data

• ECE R90-approved
• Higher lining shear strength thanks to full-surface adhesive bonding
• Sealed adhesive joint

Warranty

Warranty is conditional on being fitted by qualified technicians according to manufacturers instructions.

Fully Guaranteed against faulty components and workmanship.

Safety critical parts to be fitted by Qualified Technicians in an approved workshop.

APPLICATIONS

The full list of applications for part number:ATE1036BS can be viewed here
